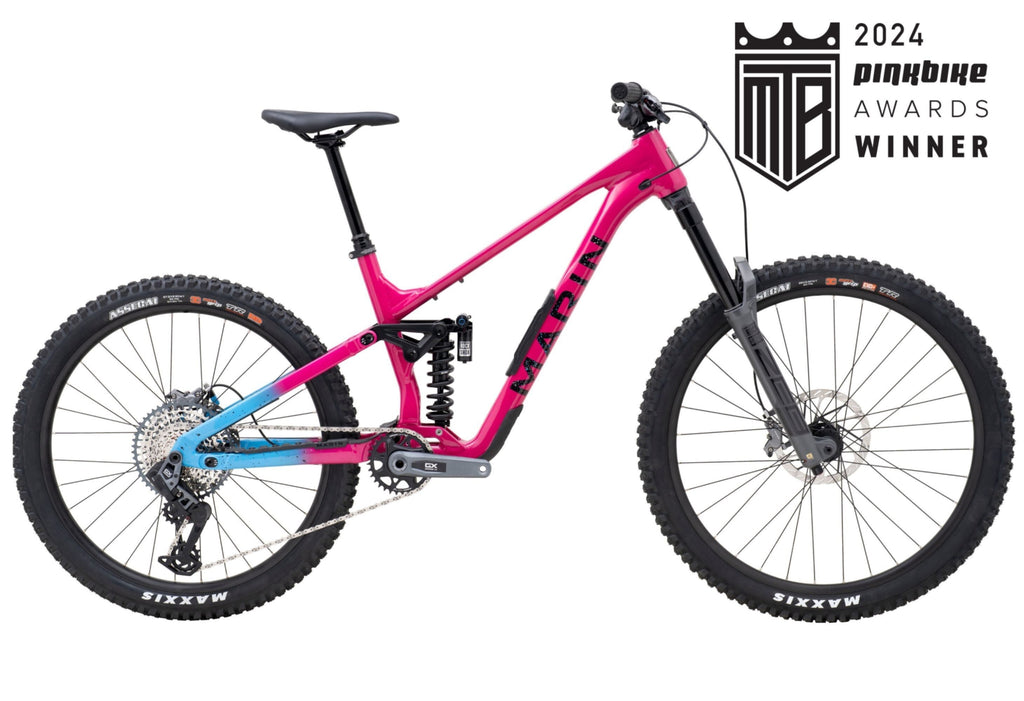

Marin Alpine Trail XR AXS

The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.

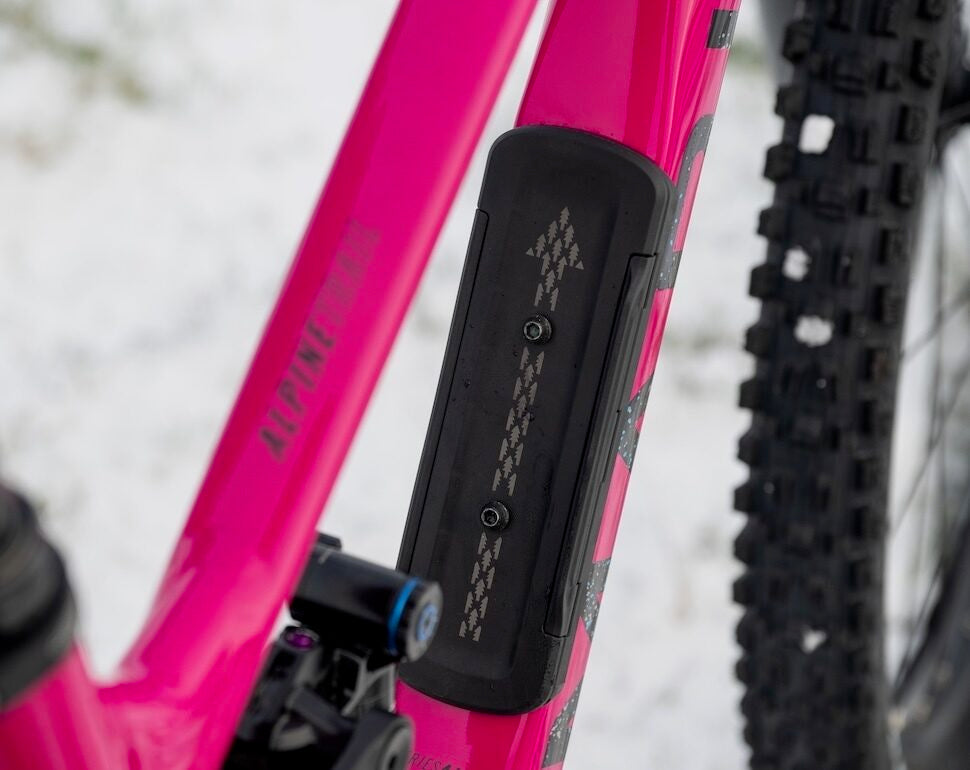

Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.

"XR" = "Xtra Rad" here at Marin, and we pulled out all the stops with the XR AXS take on the Alpine Trail. Not only did we grace the bike with Ultimate-level RockShox suspension, but took the drivetrain up a notch with SRAM's GX Eagle AXS wireless 12-speed drivetrain. SRAM's Code Bronze brakes provide tenacious stopping power with their 4-piston calipers and 203mm rotors.

• Wheel Size: Mixed 29"/27.5"
• Frame: Aluminum
• Size Range: S, M, L, XL



• • • Frame

      All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

    • Front Suspension

      RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset

    • Rear Suspension

      RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune, Spring Rates S/M: 350lbs, L/XL:450lbs

    • Rim

      Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

    • Hub Rear

      Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H

    • Hub Front

      Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h

    • Spokes

      14g Black Stainless Steel

    • Tires

      Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+, Rear 27.5x2.5" DoubleDown, Tubeless compatible

    • Derailleur Rear

      SRAM GX Eagle AXS T-Type




    • Shift Lever

      SRAM AXS POD MMX

    • Crankset

      SRAM GX Eagle, 32T, 55MM CL, 170MM Length

    • Bottom Bracket

      SRAM DUB MTB 73

    • Chain

      SRAM GX Eagle T-Type

    • Cassette

      SRAM GX 1275 T-Type 10-52T

    • Brakes Front

      SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor

    • Brakes Rear

      SRAM Code Bronze 4-Piston Hydraulic, HSC 200mm Rotor

    • Brake Levers

      SRAM Code Bronze Stealth Hydraulic

    • Handlebar

      Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

    • Stem

      Marin CNC, 35mm Length, 35mm Bar Bore

    • Grips

      Marin Grizzly Lock-On

    • Headset

      FSA Custom, Adjustable HTA Design

    • Seatpost

      TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm

    • Saddle

      Marin Speed Concept




    • Extras

      Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

    • Extras

      Downtube Storage Bag
