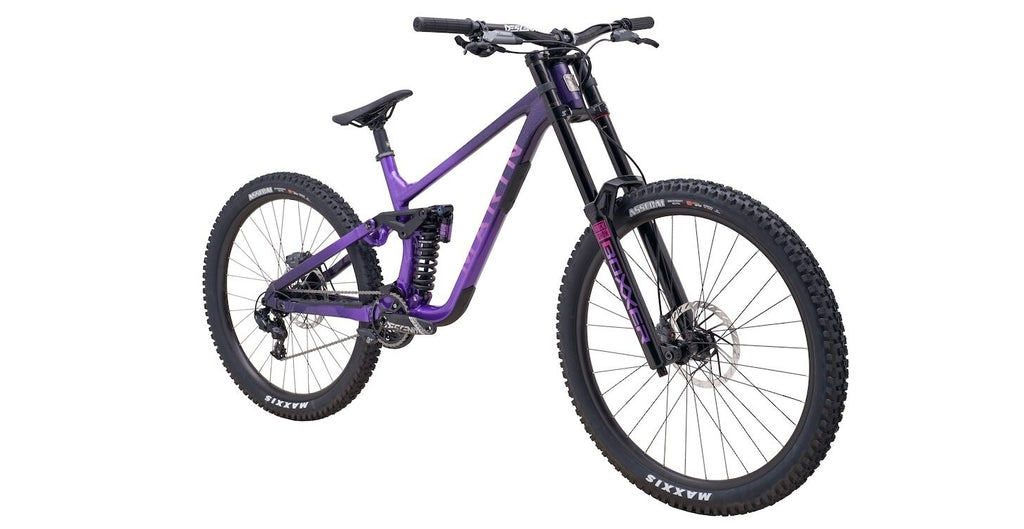

Marin Quake

The return of the legendary Quake, blurring the lines between for bike park laps, DH laps or freeride ripping - you choose. The all-new Quake has benefited from an intense development cycle where top riders have provided invaluable feedback over multiple generations of development samples.

During this time, it has proven both solid and capable by some of the best riders in the sport at some of the most demanding events including Darkfest and Hardline, and some of toughest and most challenging tracks. Matt Jones has personally competed at both Hardline events aboard pre-production and production iterations.

With a spec list chosen for performance and longevity - Rock Shox Boxxers up front, new Vivid coil out back, super-sharp Maven brakes, and not forgetting the built in frame adjustability, we make no excuses for being bold with the new Quake, which really is - Built To Send!

• FRAME

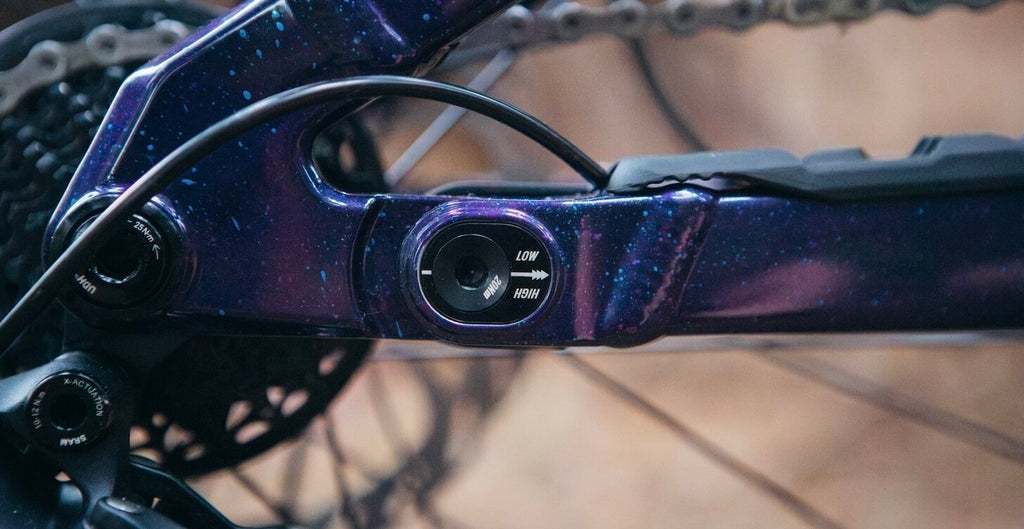

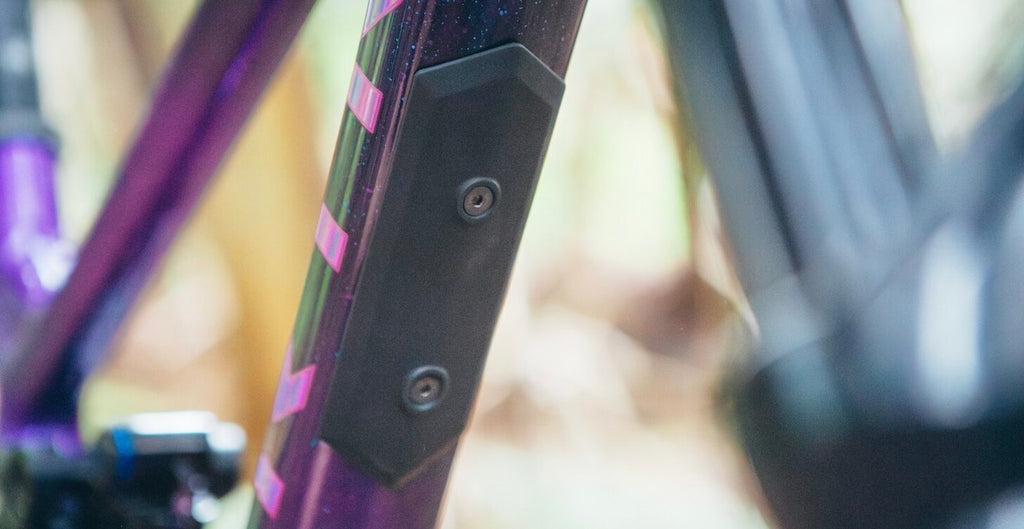

  All New Series 4 Alloy, 180mm travel MultiTrac LT Suspension, Adjustable CS Length/BB Height, 27.5" or 29" compatible, 148mm Rear Thru-Axle, & frame protection, UDH

• FRONT SUSPENSION

  RockShox Boxxer 3.0 RC, 200mm Travel, 29" , 110x20mm Maxle Stealth, 52mm Offset

• REAR SUSPENSION

  Rock Shox Vivid Coil Ultimate DH, 225x75mm Trunnion Upper Mount, 30xM8 Lower Mount, Custom Tune, S = 350 lb/in / M = 450 lb/in / L = 550 lb/in

• RIM

  Marin Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

• HUB REAR

  Formula, DDL-348S, 148x12mm, 6-Bolt Disc, 32H, Shimano Freehub Body

• HUB FRONT

  Marin Forged, 110x20mm, 6-Bolt Disc, 32H

• SPOKES

  14g Black Stainless Steel

• TIRES

  Maxxis Assegai, 2.5", Tubeless Ready, 3C MaxxGrip, DH Casing

• CHAINGUIDE

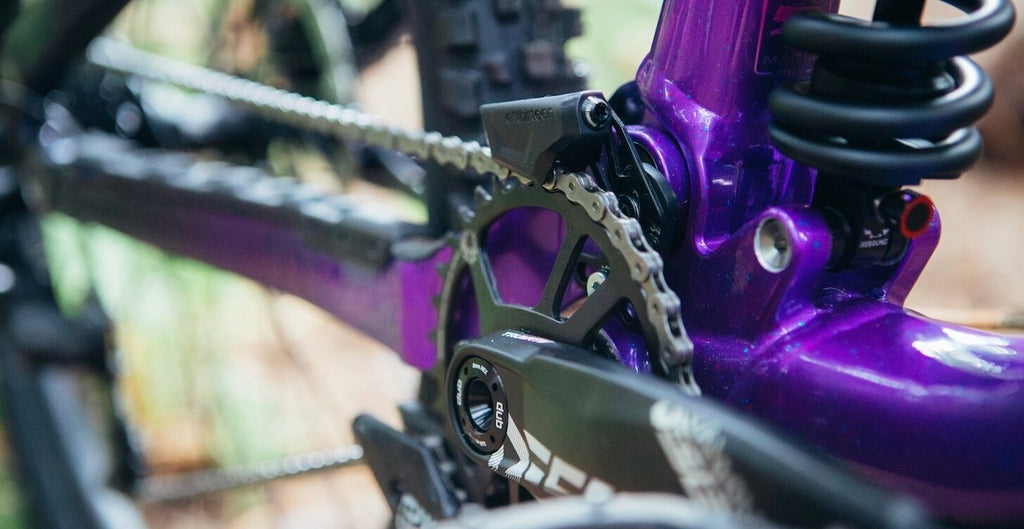

  e*thirteen Vario DH Chainguide

• DERAILLEUR REAR

  SRAM GX DH

• SHIFT LEVER

  SRAM GX DH, 7-Speed

• CRANKSET

  SRAM Descendant Alloy 34T, 165mm

• BOTTOM BRACKET

  SRAM DUB BSA

• CHAIN

  SRAM PC-1110

• CASSETTE

  SRAM GS DH, 11-25T

• BRAKES FRONT

  SRAM Maven Bronze, 200mm HS2 Rotor

• BRAKES REAR

  SRAM Maven Bronze, 200mm HS2 Rotor

• BRAKE LEVERS

  SRAM Maven Bronze

• HANDLEBAR

  SRAM Descendant DH, 31.8mm Clamp, 25mm Rise, 9 Degree Backsweep, 5 Degree Upsweep

• STEM

  SRAM Descendant DH Direct Mount, 31.8mm Clamp, 50mm Length

• GRIPS

  Marin Grizzly Lock-On

• HEADSET

  FSA No 74

• SEATPOST

  Marin Alloy, 34.9mm

• SADDLE

  Marin Short Nose
