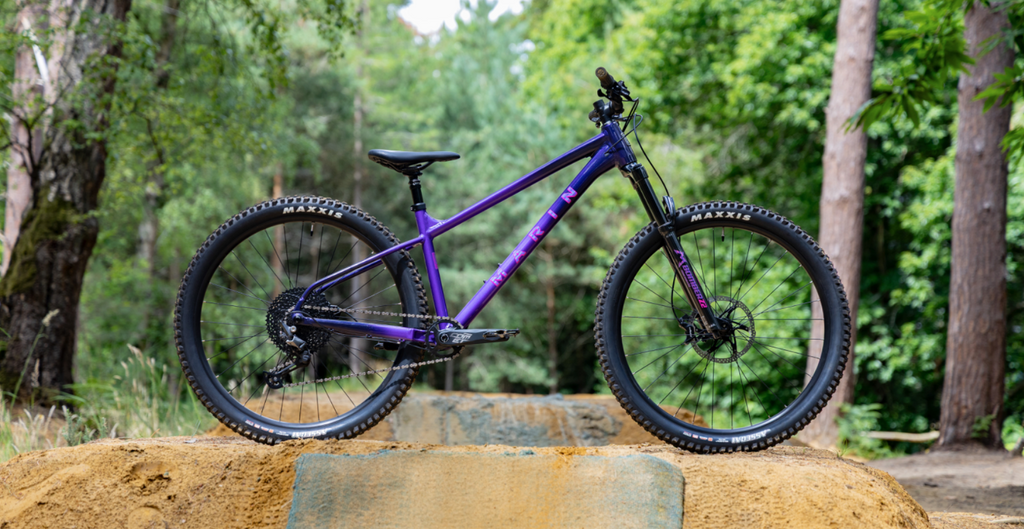

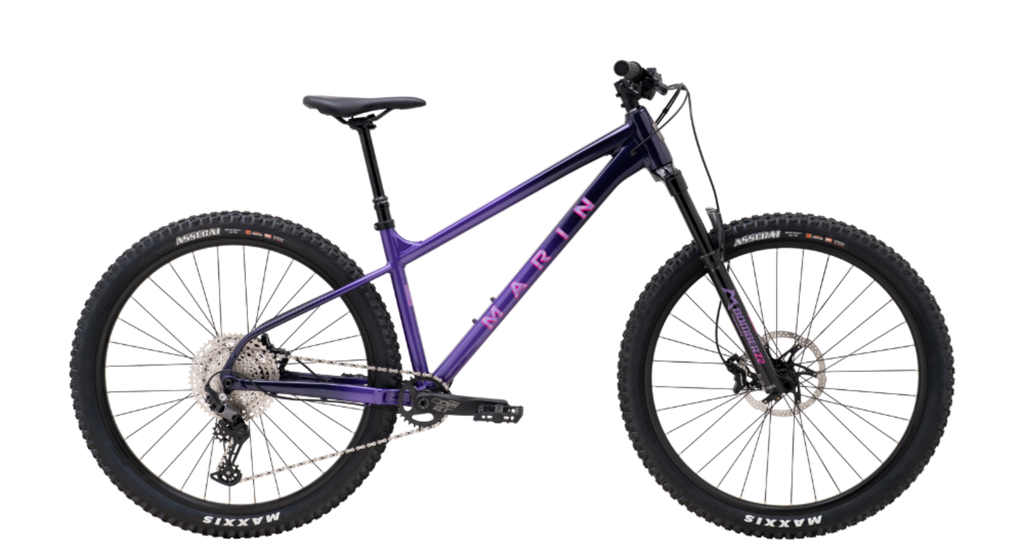

Marin San Quentin 3
- Wheel Size: 27.5"/292
- Frame: Aluminum
- Size Range: S, M, L, XL
-
DOWNHILL TRAILS
LIGHT DIRT JUMP
ENDURO
The San Quentin 3 is the top dog in the SQ family. We’ve worked tirelessly to create the very best-specced San Quentin ever but still kept the price tag down to earth and in reach of everyone. Marzocchi Z2 fork? Check. TRP 4-piston brakes and 12-speed drivetrain? X-Fusion dropper post? You got it. FSA cranks, Maxxis rubber and plenty of kick-ass Marin kit? Abso-freakin-lutely
-

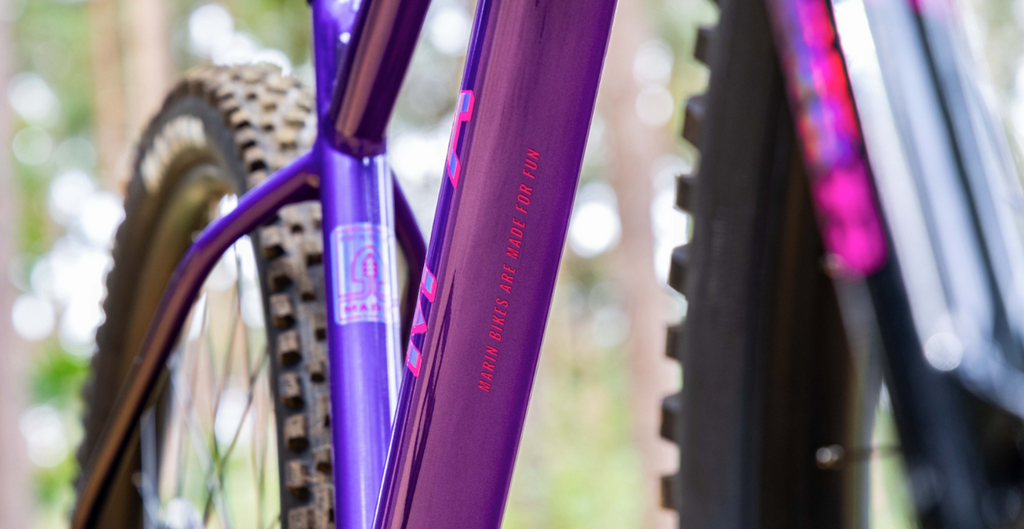

Frame
Series 3 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB
-
Front Suspension
Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle
-
Rims
Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible
-
Hub, Rear
Shimano FH-TC500, 148x12, MicroSpline Freehub Body, Centerlock Disc, 32H
-
Hub, Front
Shimano HB-TC500, 110x15mm
-
Spoke, Nipples
14g Black Stainless Steel
-
Tires
Maxxis Assegai, 27.5x2.5" MAXX TERRA, EXO Casing, Tubeless Compatible
-
Derailleur, Rear
Shimano Deore, 12-Speed, SGS
-
Derailleur, Front
-
-
Shift Lever
Shimano Deore, 12-Speed, SL-7100R
-
Crankset
FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
-
Bottom Bracket
FSA MegaExo 73mm BSA
-
Chain
KMC X-12 Silver and Black
-
Cassette
SunRace, 12-Speed, MicroSpline, 10-51T
-
Brake, Front
TRP Slate EVO 4-Piston Hydraulic, Resin Pads, 203mm Rotor
-
Brake, Rear
TRP Slate EVO, 4-Piston Hydraulic, Resin Pads, 180mm Rotor
-
Brake Levers
TRP Slate EVO, I-Spec EV Compatible
-
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
-
Stem
Marin 3D Forged Alloy, 35mm
-
Grips
Marin Grizzly Lock On
-
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
-
Seatpost
TranzX YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm, L 170mm Travel, and Size XL 200mm Travel, 30.9mm
-
Saddle
Marin Speed
